OB-1
NOON VISION’S OB-1 IS A TRUE WORKHORSE, DESIGNED FOR FAST SETUP, EFFICIENT OPERATION AND RELIABLE LIVE PRODUCTION, IN A COMPACT FORM FACTOR. IT COMBINES AN 8-CAMERA GRASS VALLEY WORKFLOW WITH VIDEO SWITCHING, REPLAY, AUDIO, INTERCOM, STREAMING AND IP-BASED VIDEO TRANSPORT, WITH HIGH FLEXIBILITY AND SPACE FOR FUTURE UPGRADABILITY. OB-1 CAN ACCOMMODATE 8 PEOPLE, MAKING IT IDEAL FOR SMALL- AND MEDIUM SIZED PRODUCTIONS. IT IS THE RIGHT CHOICE FOR LIVE SPORTS, LIGHT ENTERTAINMENT, THEATRE, AND LIVE MUSIC.
Vehicle
Iveco Daily 35S16 A8 Maxi
Weight
3.5 t
Length
7274 mm
Crew
8 people
Cameras
6, up to 12
Power
32 A CEE 5-pin
01 — Core systems
The heart of the truck.
- 01Grass Valley
6 cameras, ready for 12
Grass Valley LDX 80 camera chains with XCU WorldCam base stations — six on board today, expandable up to twelve when the production grows.
- 02Video
Sony MVS-3000 vision mixer
A professional broadcast switcher at the director's fingertips, driving two M/E rows and the full multiviewer wall.
- 03Replay
EVS replay server
The industry-standard EVS XT-3 with 12 channels, xFile and two LSM remotes — slow motion, highlights and instant playback.
- 04Audio
Yamaha QL1 audio
A professional digital audio console in an acoustically treated sound room, with Genelec monitoring and a Riedel Artist 64 intercom matrix.
- 05IP
SMPTE 2110 IP transport
IP-based video transport on board — OB-1 speaks the language of the all-IP broadcast future, today.

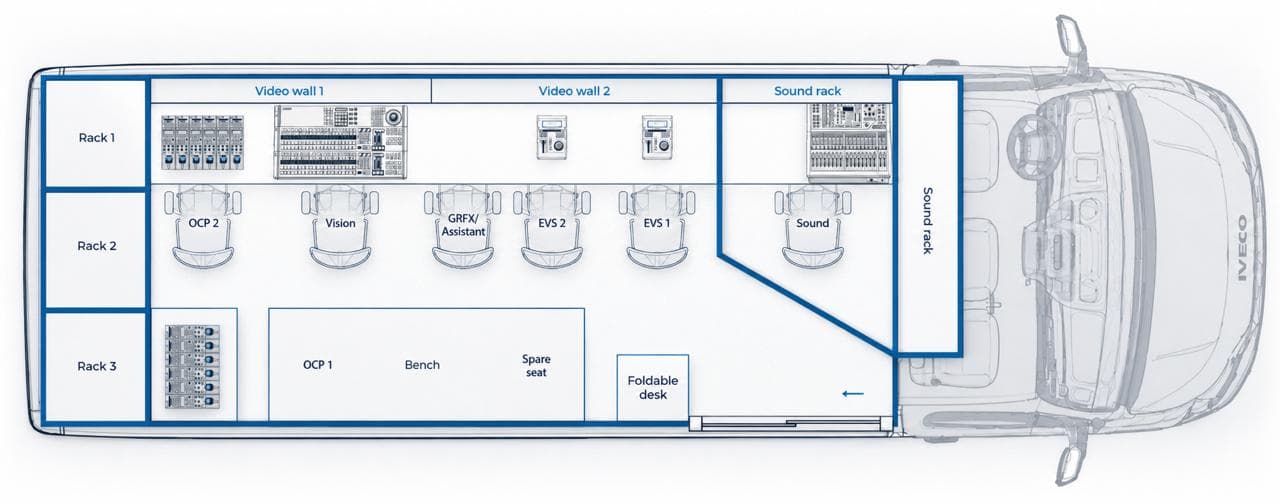

02 — Layout
Every centimetre works.
Eight workstations, three equipment racks, a separate sound room and a full multiviewer wall — arranged into 7.3 metres of truck. Nothing decorative, everything within arm's reach.
03 — Exterior
Ready for the elements.

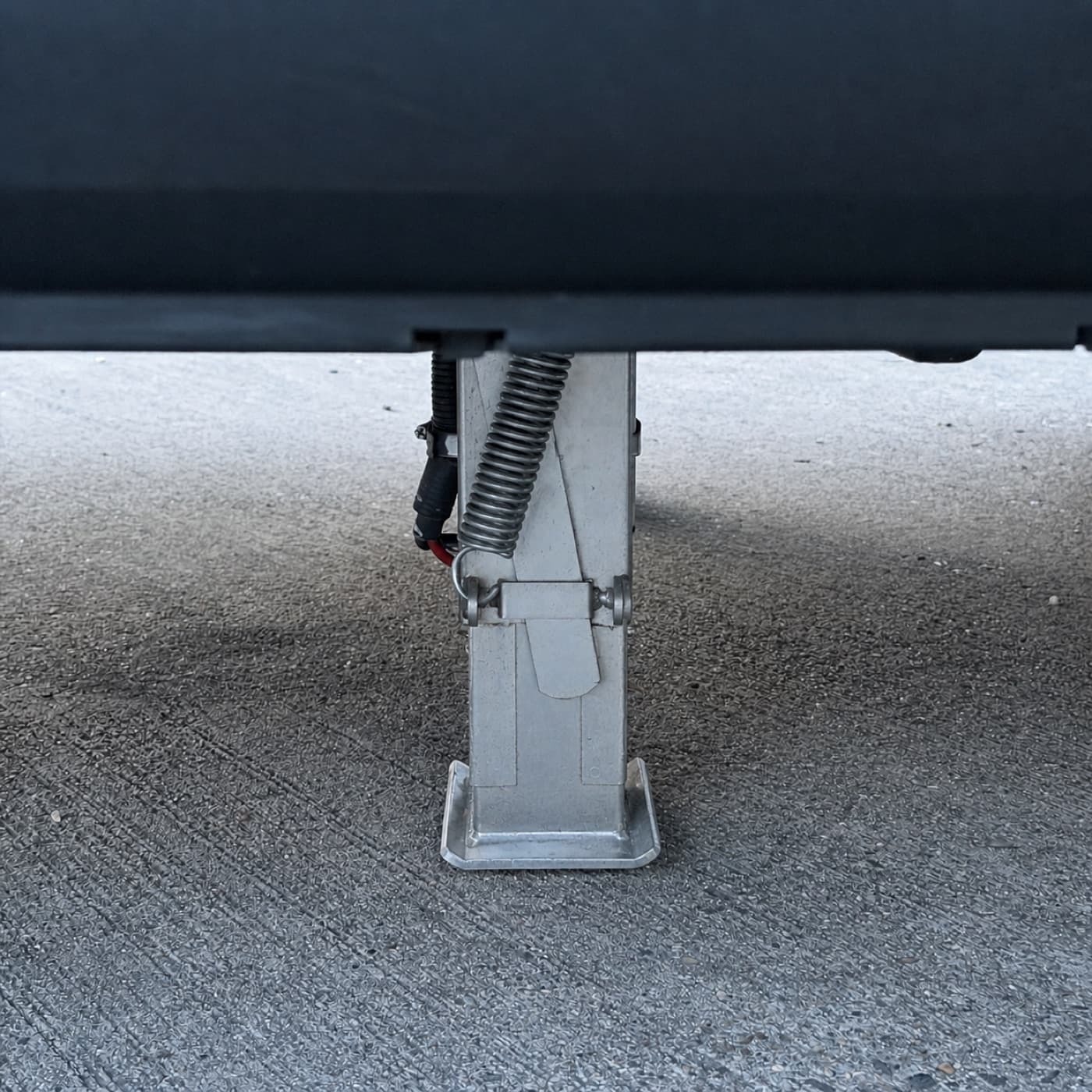

01Stabilizer feet
Deployable stabilizer feet keep OB-1 perfectly still while on air — no shake on the cut, no drift in the replay.

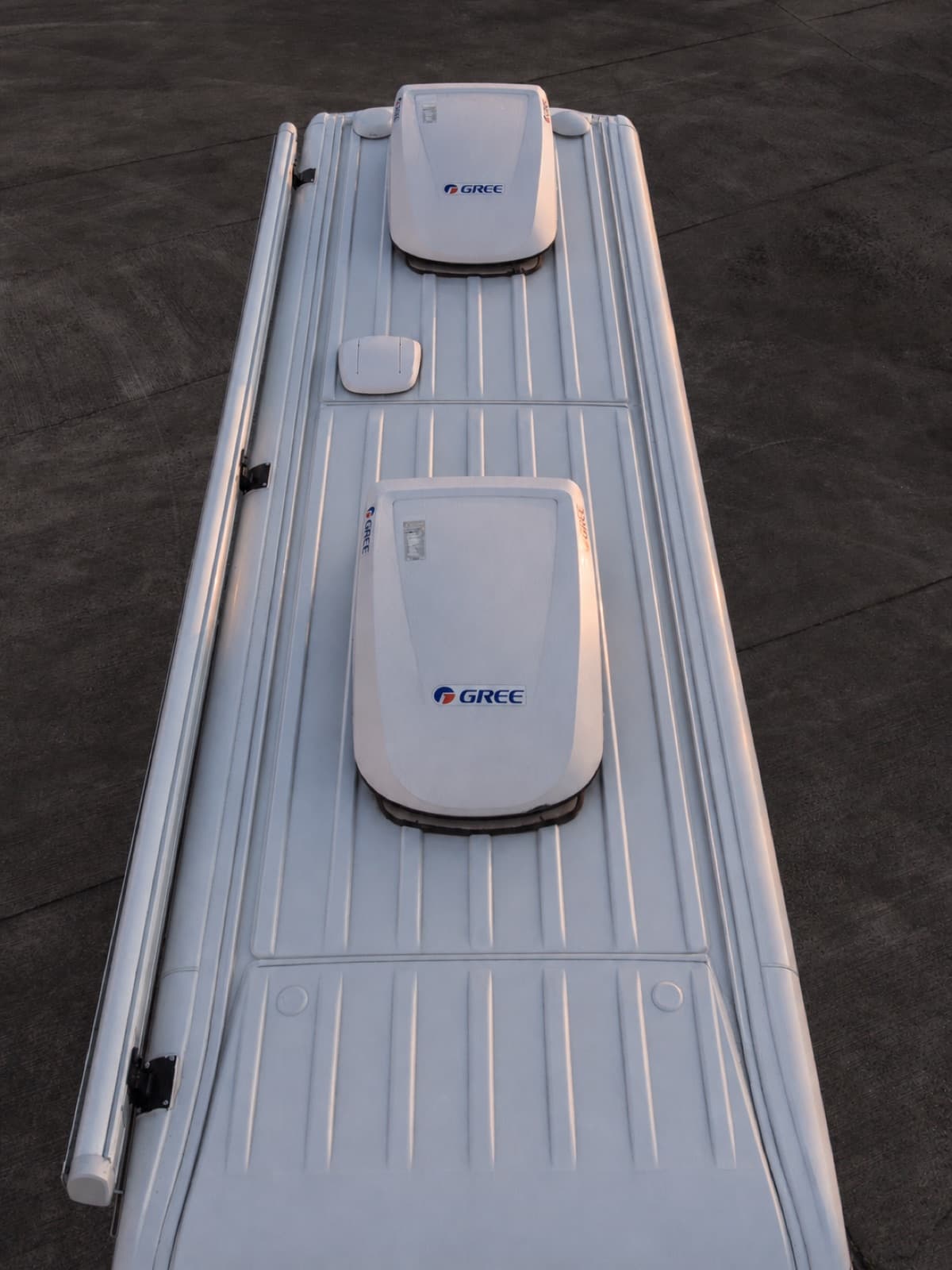

02Dual rooftop AC
Two independent rooftop air-conditioning units keep the crew sharp and the racks cool through the longest summer broadcasts.

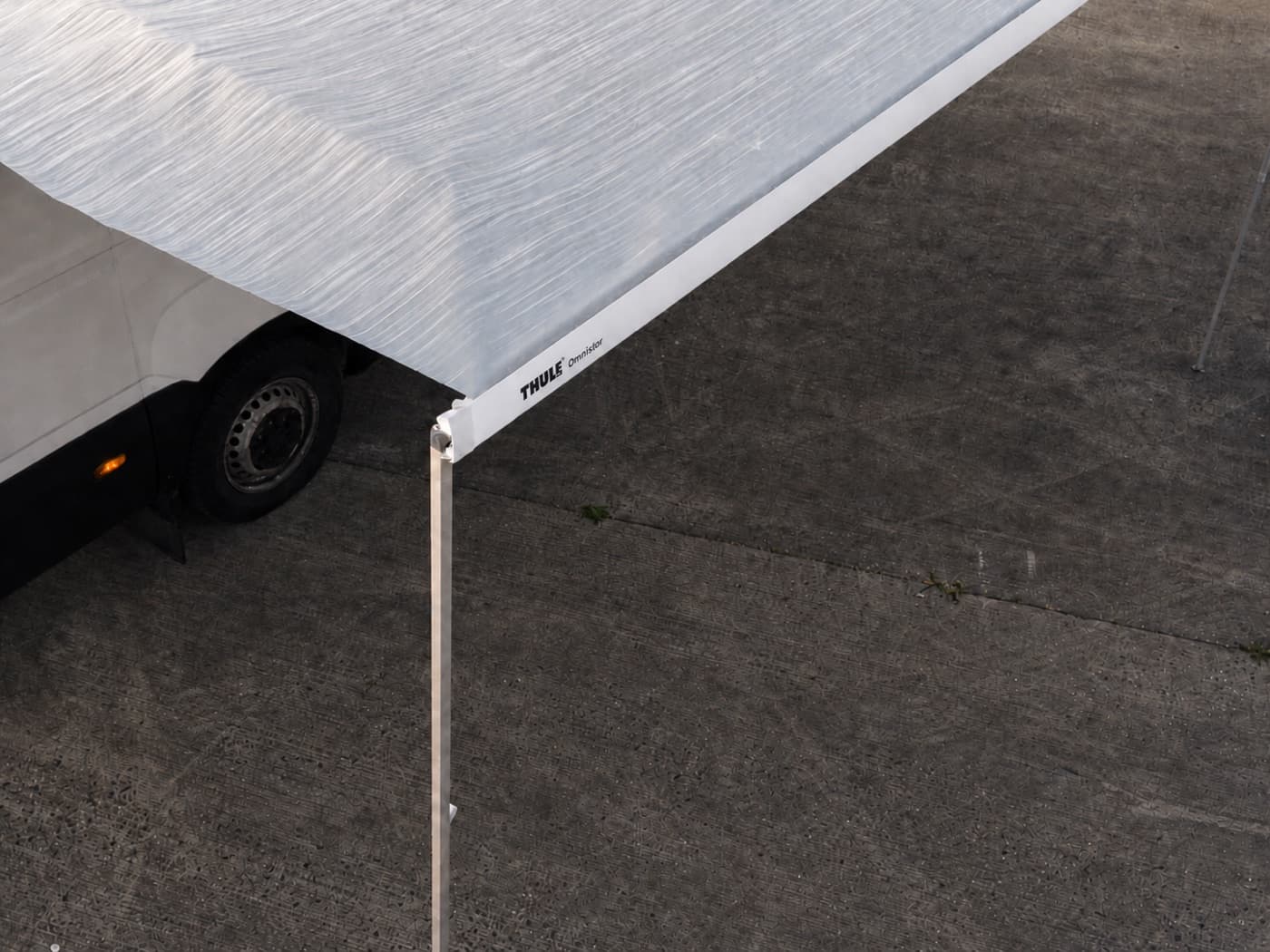

03Retractable sunshade
A retractable side awning shades the entrance and turns the side of the truck into a covered outdoor work area.

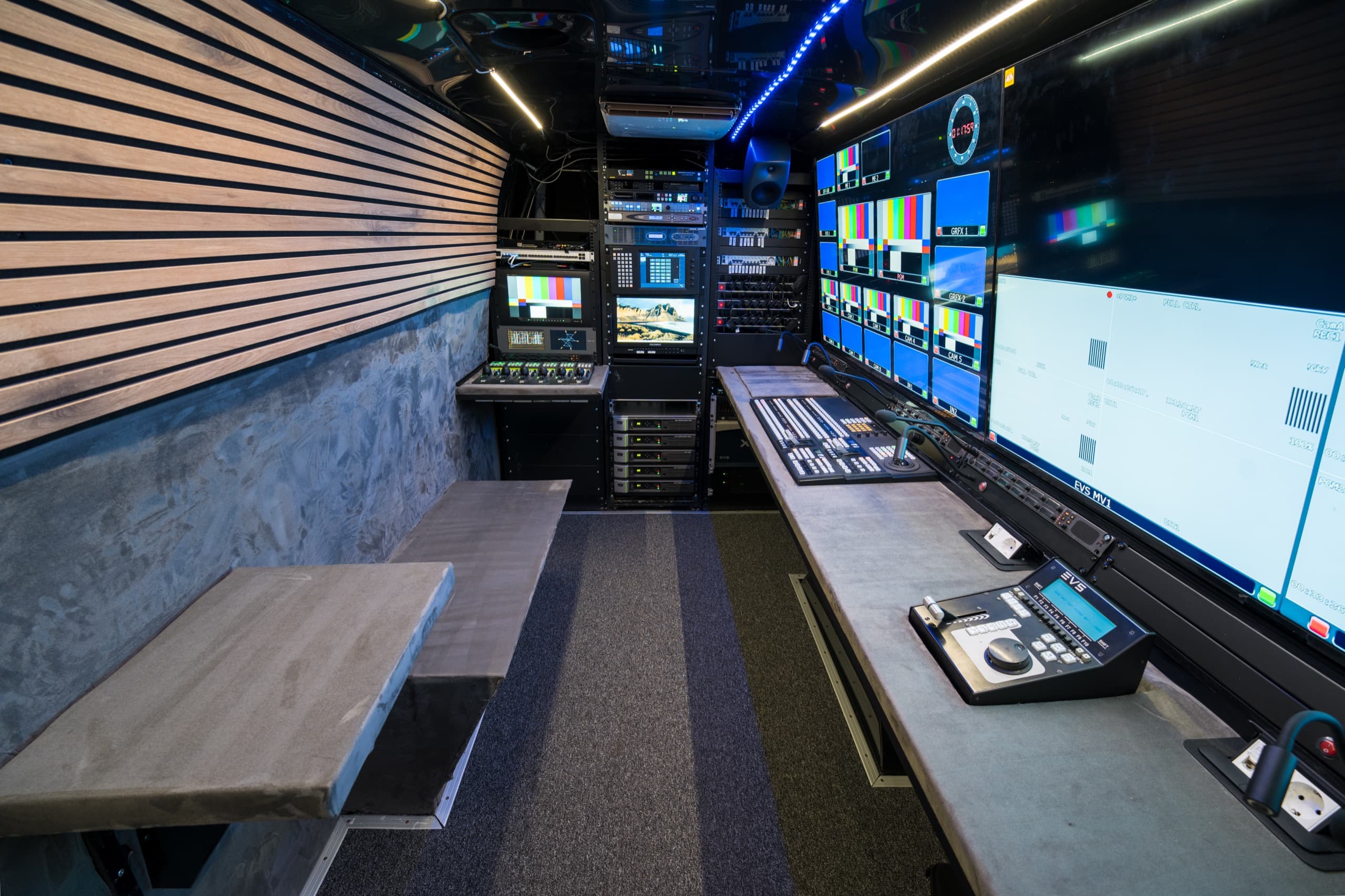

04 — Interior
Step inside.

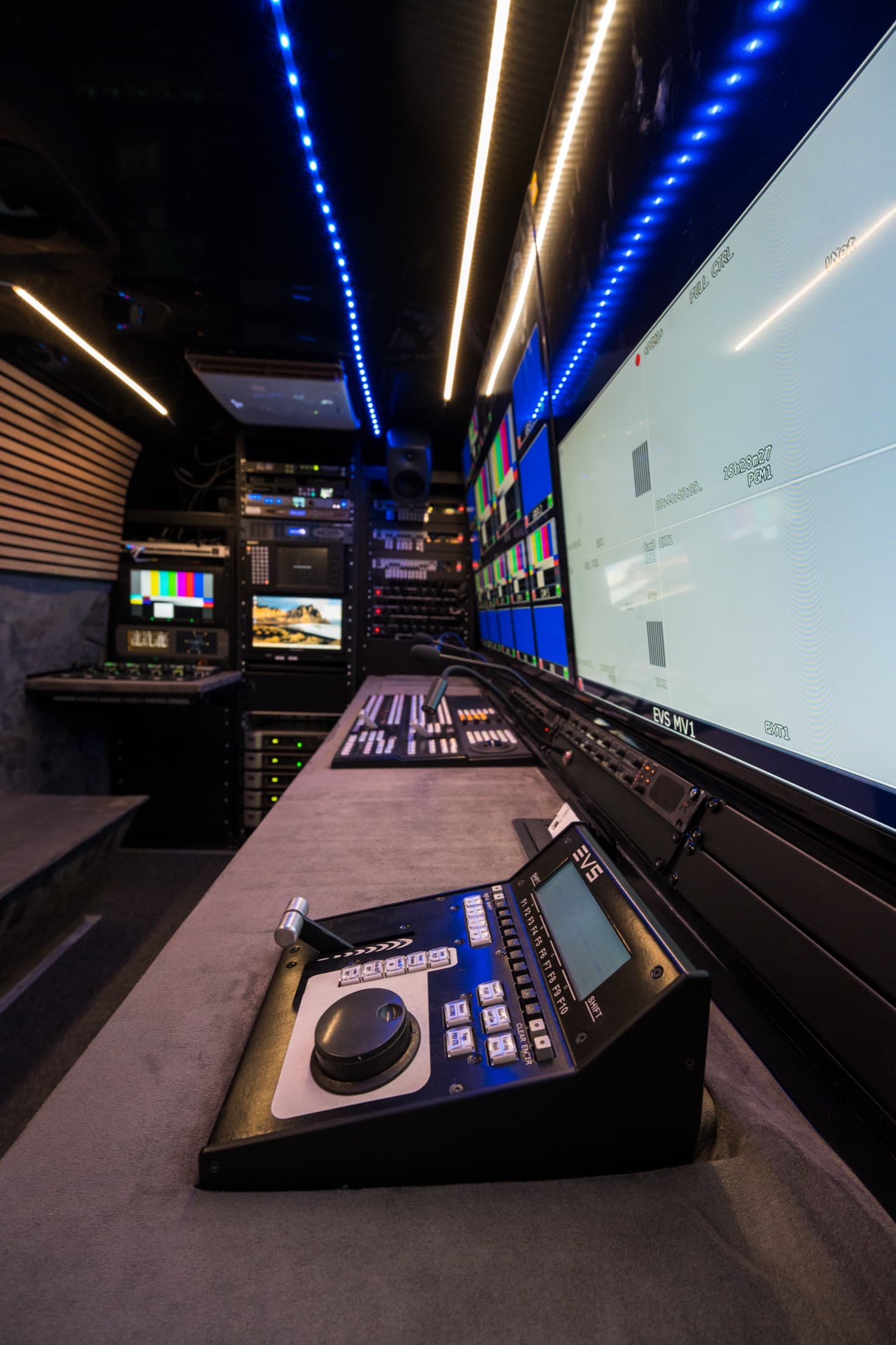

EVS replay station
Twelve channels of slow motion at the operator's fingertips.

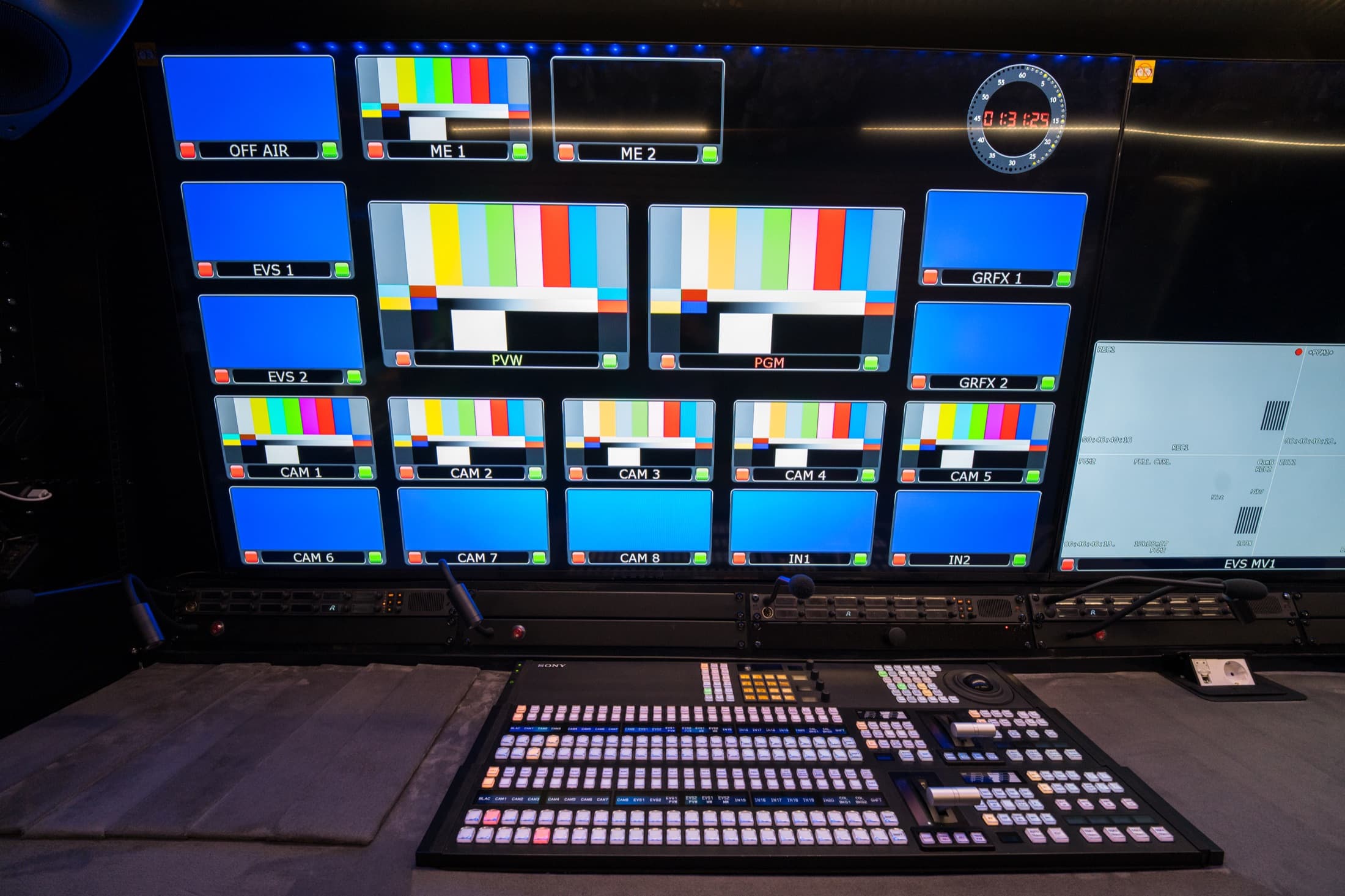

Director's seat
The Sony MVS-3000 panel under a full multiviewer wall.

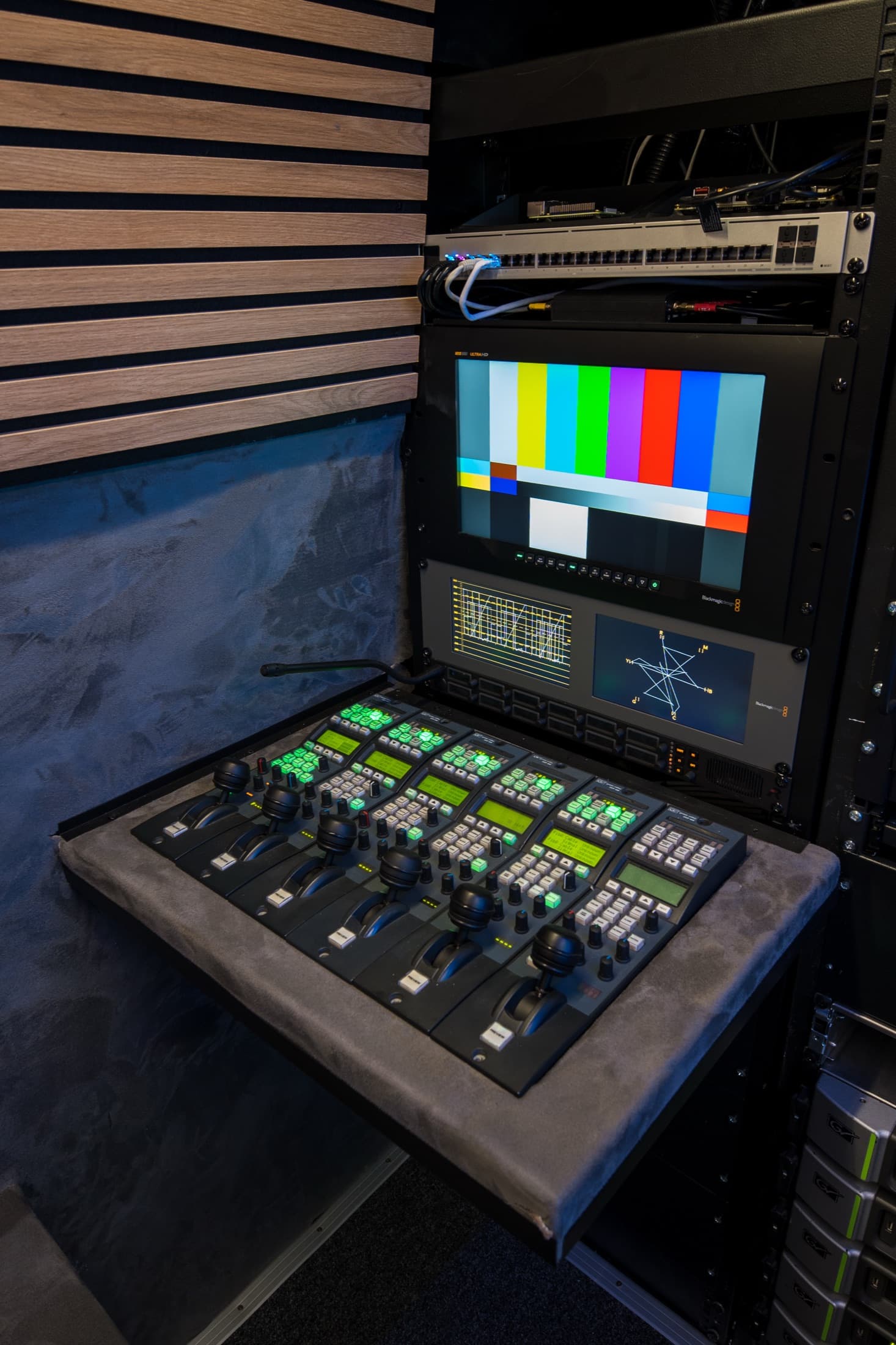

OCP control panels
Six Grass Valley OCP-400 panels for camera shading.

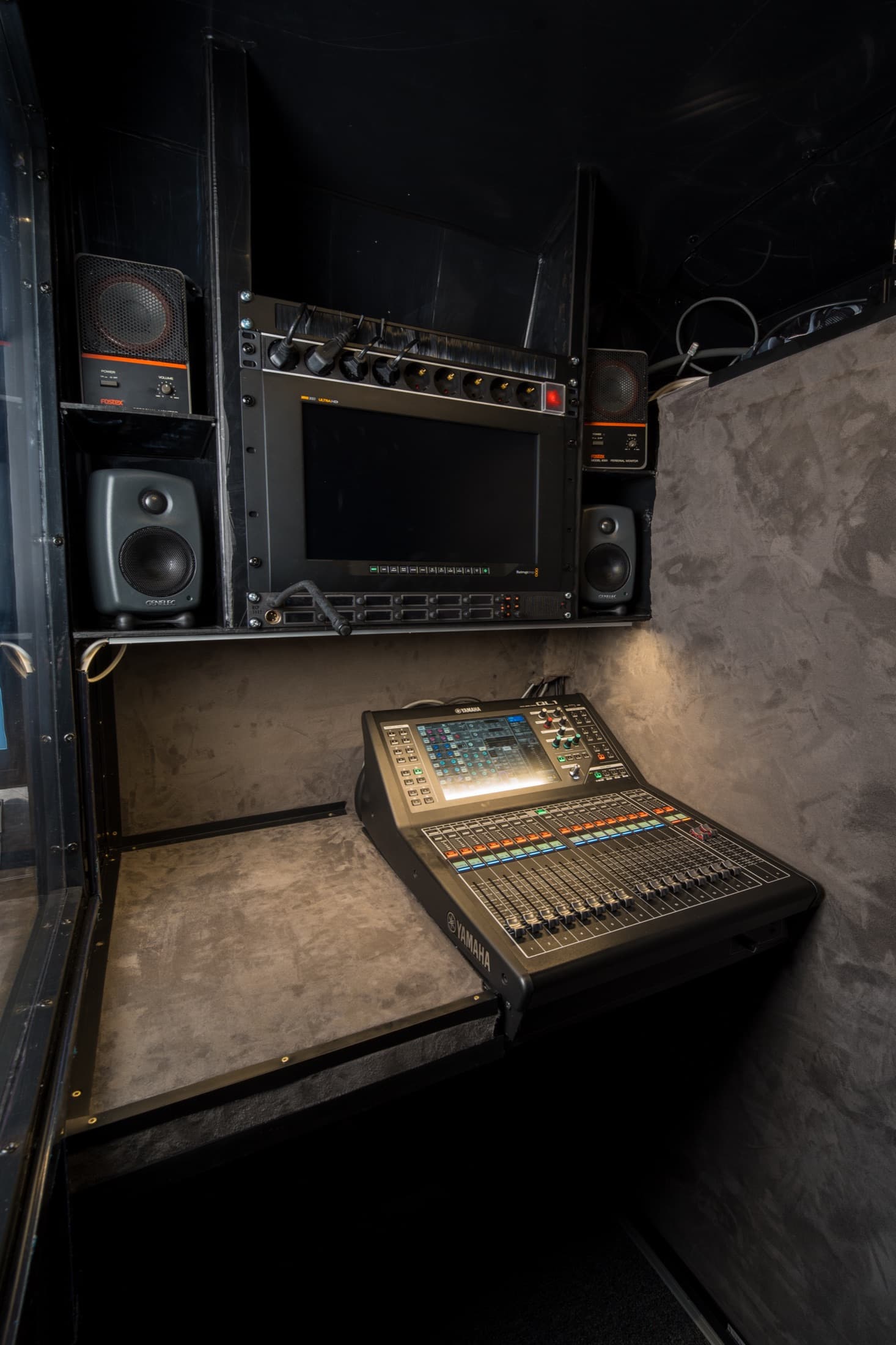

Sound engineer room
An acoustically treated cabin around the Yamaha QL1.
05 — Tech specs
The full rider.
01Vehicle
- Model
- Iveco Daily 35S16 A8 Maxi
- Weight
- 3.5 t
- Length
- 7274 mm
- Width
- 2052 mm
- Height
- 2660 mm
- Power
- 32 A CEE 5-pin connector
02Video
- Vision mixer
- Sony MVS-3000
- Replay
- EVS XT-3 (12 channels), EVS xFile, 2x EVS LSM, 2x EVS ipDirector
- Converters
- BMD Teranex AV, BMD Mini Converter UpDown/Cross converters
- Multiview
- Harris Predator II, Zandar Predator
- Streaming
- BMD Streaming Encoder 4K
- Sync
- Evertz 5601MSC
- GRFX
- BMD UltraStudio HD Mini
- Video transport
- BMD 2110 IP Converter 3x3G
- Monitoring
- 2x Sony KD-65X85L, 2x BMD SmartView 4K, 1x BMD SmartScope Duo 4K
03Cameras
- Camera chains
- 6x Grass Valley LDX 80, XCU WorldCam, OCP-400 — more upon request
- Lenses
- 3x Canon HJ22ex7.6B IASE, 1x Canon HJ14ex4.3B IASE — more upon request
- Drone
- DJI Inspire 2 with X7 camera, or Inspire 3
04Audio
- Mixer
- Yamaha QL1
- Microphones, IEM
- Sennheiser MKH 416 P48 shotguns, ElectroVoice RE50 dynamic, Sennheiser wireless handheld and lavalier, Sennheiser wireless and wired IEM systems
- Intercom
- Riedel Artist 64, 6x RCP1112 control panels, Motorola radios
- I/O device
- Denon 700R USB/SD/Network player/receiver
- Speakers
- 2x Genelec 8030C, 2x Genelec 8010A, 2x Fostex 6301
05Commentary
- Audio codec
- Tieline ViA audio codec
- Headset
- Audio-Technica BPHS1
- Microphone
- Coles 4104B
- Video
- BMD 2110 IP Converter 3x3G
06Network / IT
- Router
- Peplink MAX BR1 Pro 5G
- Antenna
- Peplink Mobility 42G
- Switch
- Ubiquiti Pro HD 24
- Satellite
- Starlink Standard, or optional Starlink Performance
- Config PC
- LattePanda Sigma
- KVM
- 2x JetKVM
